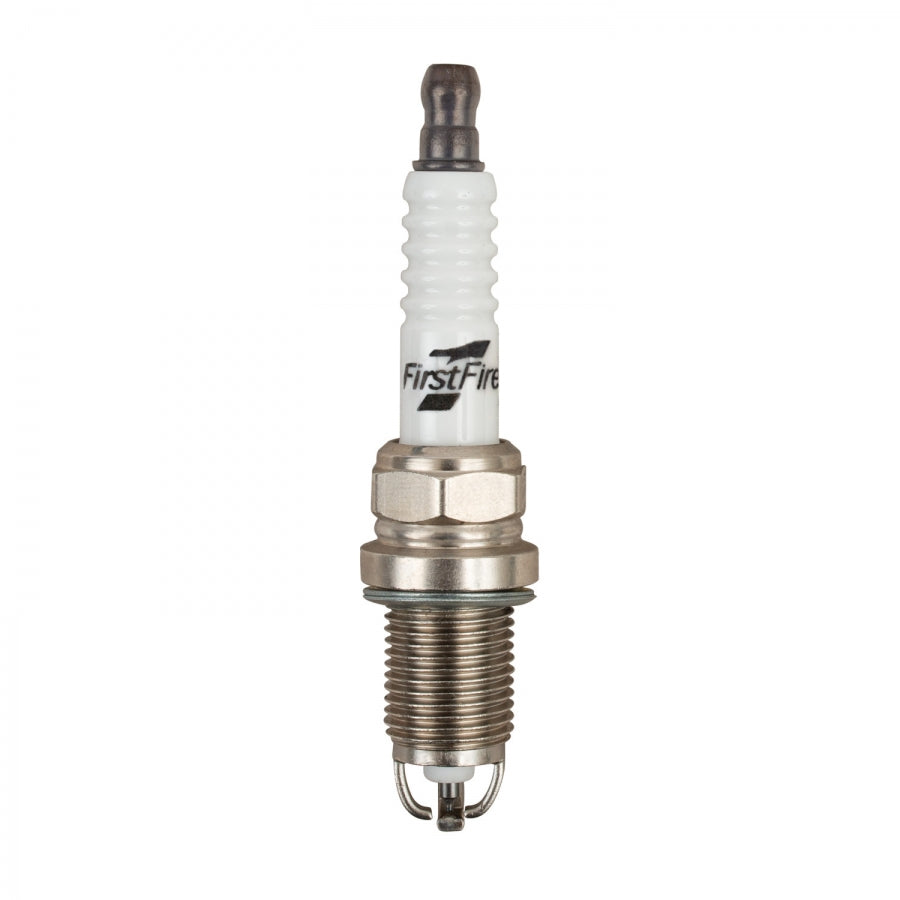

E3.261 Spark Plug Kit
الوصف
BENEFITS
Long Life Double Iridium-Rhodium technology acquired from natural gas industrial engines.
Iridium-Rhodium alloy center electrode surface exceeds OEM by 30%.
Higher Iridium-Rhodium alloy melting points reduce incidents of alloy melting/bridging the gap, misfires.
Methyl vinyl silicone rubber boots rating 500° F / 260° C and stronger dielectric properties exceed OEM.
DuPont® Krytox 205 dielectric grease pre-applied to boots meets OEM requirements, fleet time saver.
90 day warranty for manufacture's defects and materials.
CROSS-REFERENCE
Cummins 4089869, 4955226, 4955850, 5473009, 5473010
Cummins 6 Pack 5633408
Denso 674-2000, 674-2002
Denso 6 Pack 674-2008
APPLICATION
Heavy-Duty Trucks & Bus
Natural Gas, CNG, LNG, RNG
Cummins C Gas Plus, L gas Plus, ISL G, ISL G NZ, L9N
Specifications
- Part Number:E3.261
- Spark Plug Type:Long Life Double Iridium -Rhodium
- SAE Standard:J548/1_201303 or SAE J548/1
- ISO Standard:ISO/TS16949:2009 (TS3), ISO 9001
- Resistor: Fired In Suppressor Seal FISS
- Hex Size:5/8" (16mm)
- Thread Reach:0.750" (19mm)
- Thread Diameter:14mm
- Shell:Cold Rolled Steel, Nickel-Electrolytic Plated
- Seat:Gasket
- Insulator:Dielectric Ceramic 95% Alumina

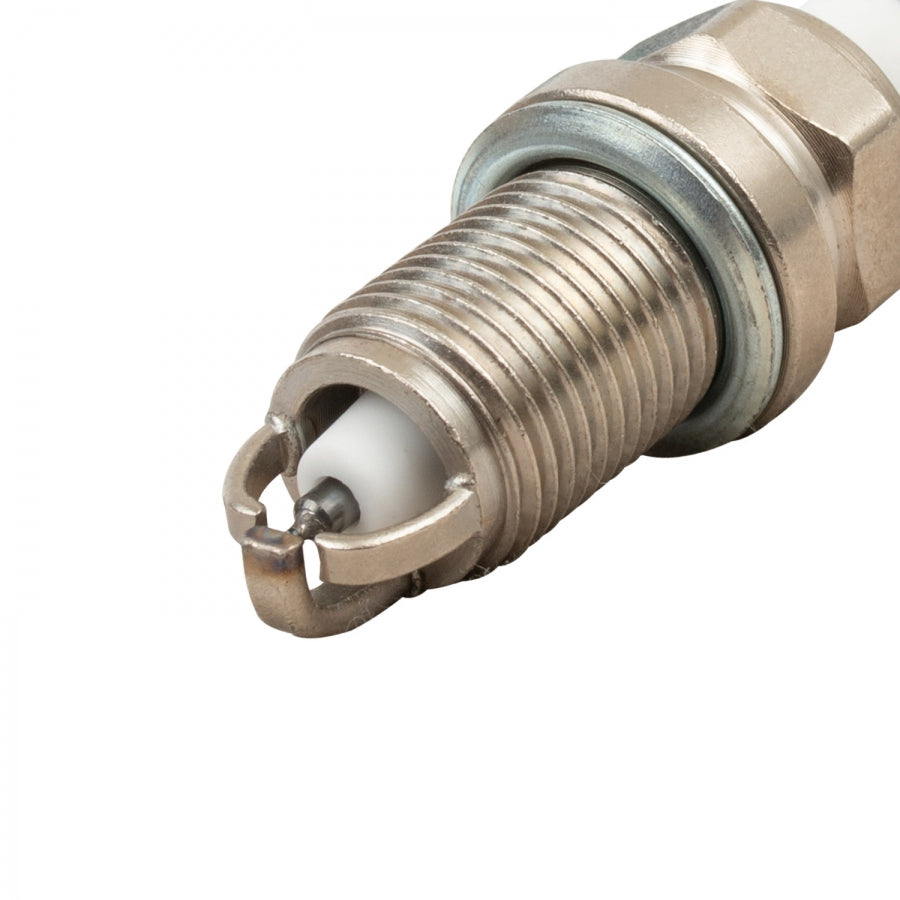

- Center Electrode:Nickel Alloy/Copper Core, 0.8mm Iridium-Rhodium Alloy - 360° Laser Welded
- Ground Electrode:Nickel Alloy, 1.2mm Iridium-Rhodium Alloy - 360° Laser Welded
- Gap:0.014" (0.355mm)
- Torque Value:28 ft-lb (38 N-m)
- Boot:Silicone Rubber
- Dielectric Greace:DuPont® Krytox 205
- Packaged:1 per box, 48 boxes per case, 96 per master case

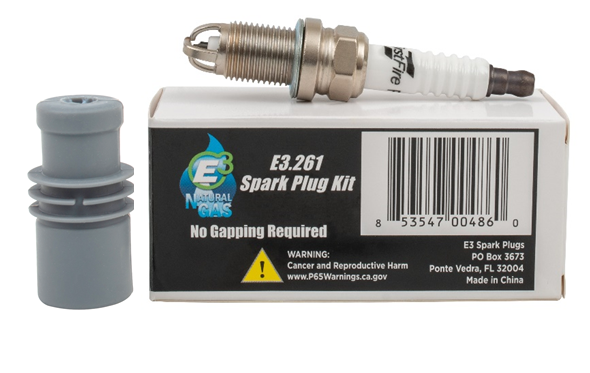

- Packaged Contents: (1) Spark Plug, (1) Boot with dielectric grease applie
Product Fitment
